BCT644 Datasheet, Switch, BROADCHIP

BCT644 Features

  • Switch
  • Switch Type: SPDT(10x)
  • Signal Types: MIPI, D-PHY
  • VCC:1.65 to 4.5V
  • Input Signals: 0 to VCC
  • RON: 6.0Ω Typical HS MIPI 8.0Ω Typical LP MIP

PDF File Details

Part number:

BCT644

Manufacturer:

BROADCHIP

File Size:

708.18kb

Download:

📄 Datasheet

Description:

2:1 mipi d-phy(1.5gbps) 4-data lane switch. The BCT644 is a four-data-lane, MIPI, D-PHY switch. This single-pole, double-throw (SPDT) switch is optimized for switching between t

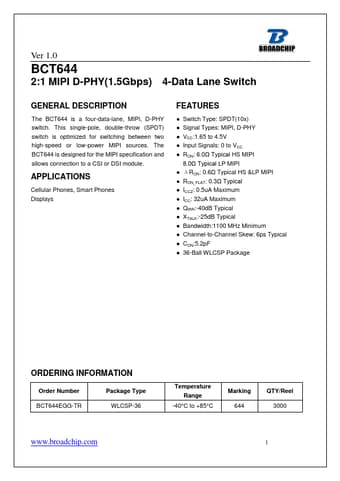

Datasheet Preview: BCT644 📥 Download PDF (708.18kb)
Page 2 of BCT644 Page 3 of BCT644

BCT644 Application

  • Applications Cellular Phones, Smart Phones Displays FEATURES
  • Switch Type: SPDT(10x)
  • Signal Types: MIPI, D-PHY
  • VCC:1.6

TAGS

BCT644
MIPI
D-PHY1.5Gbps
4-Data
Lane
Switch
BROADCHIP
