MSF10N40 - 400V N-Channel MOSFET

MSF10N40 Description

MSF10N40 400V N-Channel MOSFET .
The MSF10N40 is a N-channel enhancement-mode MOSFET , providing the designer with the best combination of fast switching, ruggedized device design, lo.

MSF10N40 Features

* Originative New Design
* Very Low Intrinsic Capacitances
* Excellent Switching Characteristics
* 10.5A, 400V, RDS(on) = 0.55Ω @VGS = 10 V
* Extended Safe Operating Area
* Low gate charge (typ 30nC)
* 100% Avalanche Tested
* RoHS compl

📥 Download Datasheet

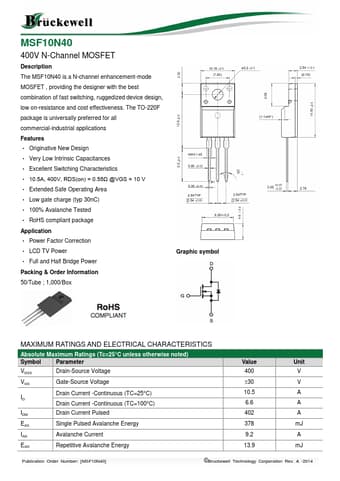

Preview of MSF10N40 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MSF10N40
Manufacturer
Bruckewell
File Size
1.05 MB
Datasheet
MSF10N40-Bruckewell.pdf
Description
400V N-Channel MOSFET
