MSF10120V1 Datasheet, Diode, Maple Semiconductor

MSF10120V1 Features

  • Diode -1200-Volt Schottky Rectifier -Shorter recovery time -High-speed switching possible -High-Frequency Operation -Temperature-Independent Switching Behavior -Extremely Fast Switching -Posi

PDF File Details

Part number:

MSF10120V1

Manufacturer:

Maple Semiconductor

File Size:

260.80kb

Download:

📄 Datasheet

Description:

Silicon carbide diode.

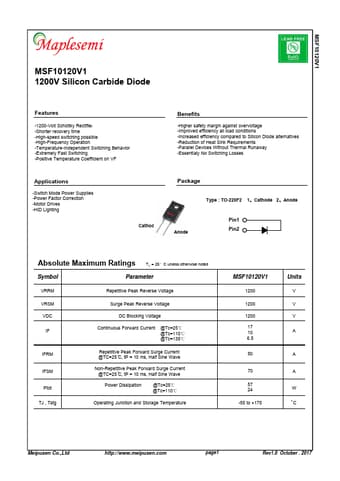

Datasheet Preview: MSF10120V1 📥 Download PDF (260.80kb)
Page 2 of MSF10120V1 Page 3 of MSF10120V1

MSF10120V1 Application

  • Applications -Switch Mode Power Supplies -Power Factor Correction -Motor Drives -HID Lighting Cathode Package Type : TO-220F2 1、Cathode 2、Anode
