MSF10N80A

800V N-Channel MOSFET

MSF10N80A Features

* Originative New Design Very Low Intrinsic Capacitances Excellent Switching Characteristics Unrivalled Gate Charge : 46nC (Typ.) Extended Safe Operating Area Lower RDS(ON) : 1.05 Ω (Typ.) @VGS=10V 100% Avalanche Tested Absolute Maximum Ratings (Tc=25°C unless otherwise specified) Symbol VDSS ID IDM

MSF10N80A Datasheet (1.25 MB)

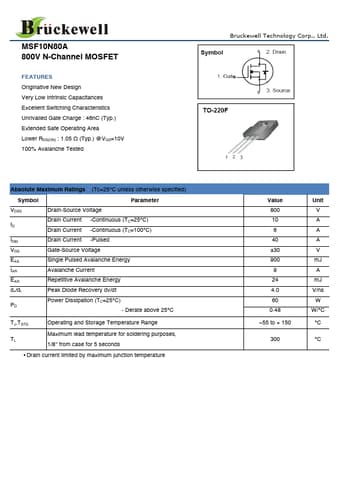

Preview of MSF10N80A PDF

Datasheet Details

Part number:

MSF10N80A

Manufacturer:

Bruckewell

File Size:

1.25 MB

Description:

800v n-channel mosfet.
