CG2409M2

High Power SPDT RF Switch

CEL

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	California Eastern Laboratories (CEL)	CG2409M2	CG2409M2	IC RF SWITCH SPDT 3.8GHZ 6MINIM	DigiKey	0	200 units	$1.31	🛒 Buy Now

📥 Download PDF (887.06 KB)

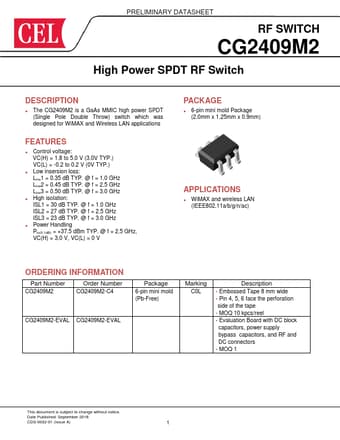

CG2409M2 Datasheet Preview Page 1 — Preview of CG2409M2 Datasheet

Datasheet Details

Part number:

CG2409M2

Manufacturer:

CEL

File Size:

887.06 KB

Download:

📄 Download CG2409M2 Datasheet PDF

Description:

High power spdt rf switch.
PRELIMINARY DATASHEET RF SWITCH CG2409M2 EHnitgerhaPSohowrteDroScPumDeTntR/TFitleSNwaimtcehHere DES.
* The CG2409M2 is a GaAs MMIC high power SPDT (Single Pole Double Throw) switch which was designed f.

✔ CG2409M2 Features

Control voltage: VC(H) = 1.8 to 5.0 V (3.0V TYP.) VC(L) = -0.2 to 0.2 V (0V TYP.)
Low insersion loss: Lins1 = 0.35 dB TYP. @ f = 1.0 GHz Lins2 = 0.45 dB TYP. @ f = 2.
