CG2430X1 - 0.1 to 6.0GHz SP3T Switch

CEL

📥 Download Datasheet

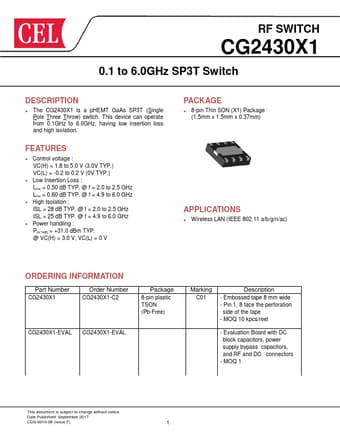

CG2430X1 Datasheet Preview — Preview of CG2430X1 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CG2430X1
Manufacturer	CEL
File Size	778.34 KB
Description	0.1 to 6.0GHz SP3T Switch
Datasheet	CG2430X1-CEL.pdf

CG2430X1 Product details

Description

The CG2430X1 is a pHEMT GaAs SP3T (Single Pole Three Throw) switch.

Features

Control voltage : VC(H) = 1.8 to 5.0 V (3.0V TYP. ) VC(L) = -0.2 to 0.2 V (0V TYP. ).
Low Insertion Loss : Lins = 0.50 dB TYP. @ f = 2.0 to 2.5 GHz Lins = 0.60 dB TYP. @ f = 4.9 to 6.0 GHz.
High Isolation : ISL = 28 dB TYP. @ f = 2.0 to 2.5 GHz ISL = 25 dB TYP. @ f = 4.9 to 6.0 GHz.
Power handling : Pin(1dB) = +31.0 dBm TYP. @ VC(H) = 3.0 V, VC(L) = 0 V.
