CG2409X3

High Power SPDT RF Switch

CEL

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	California Eastern Laboratories (CEL)	CG2409X3	CG2409X3	IC RF SWITCH SPDT 6GHZ 6TSON	DigiKey	0	200 units	$1.31	🛒 Buy Now

📥 Download PDF (845.03 KB)

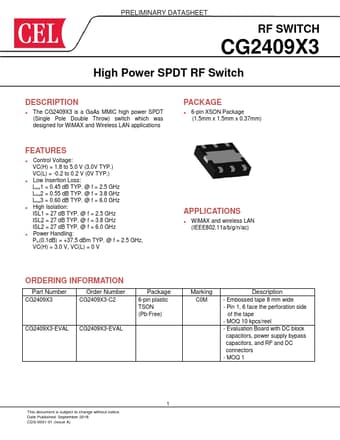

CG2409X3 Datasheet Preview Page 1 — Preview of CG2409X3 Datasheet

Datasheet Details

Part number:

CG2409X3

Manufacturer:

CEL

File Size:

845.03 KB

Download:

📄 Download CG2409X3 Datasheet PDF

Description:

High power spdt rf switch.
PRELIMINARY DATASHEET RF SWITCH CG2409X3 EHnitgerhaPSohowrteDroScPumDeTntR/TFitleSNwaimtcehHere D.
* The CG2409X3 is a GaAs MMIC high power SPDT (Single Pole Double Throw) switch which was designed f.

✔ CG2409X3 Features

Control Voltage: VC(H) = 1.8 to 5.0 V (3.0V TYP.) VC(L) = -0.2 to 0.2 V (0V TYP.)
Low Insertion Loss: Lins1 = 0.45 dB TYP. @ f = 2.5 GHz Lins2 = 0.55 dB TYP. @ f = 3.

✔ CG2409X3 Application

PACKAGE
6-pin XSON Package (1.5mm x 1.5mm x 0.37mm) FEATURES
Control Voltage: VC(H) = 1.8 to 5.0 V (3.
