NX6301 Datasheet - CEL

LASER DIODE

NX6301 Features

* OPTICAL OUTPUT POWER: PO = 5.0 mW

* LOW THRESHOLD CURRENT: ITH = 13 mA

* HIGH SPEED: tr, tf = 0.5 ns MAX

* SMSR: 40 dB

* WIDE OPERATING TEMPERATURE RANGE: TC = -40 to +85°C

* InGaAs MONITOR PIN-PD

* CAN PACKAGE: ø5.6 mm

* BASED ON TEL

NX6301 General Description

NEC's NX6301 Series is a 1310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD. This device is ideal for Synchronous Digital Hierarchy (SDH) and SONET systems, STM-1/ OC-3, STM-4/OC-12 and ITU-T recommendations. ELECTRO-OPTICAL CHARACTERIS.

NX6301 Datasheet (98.92 KB)

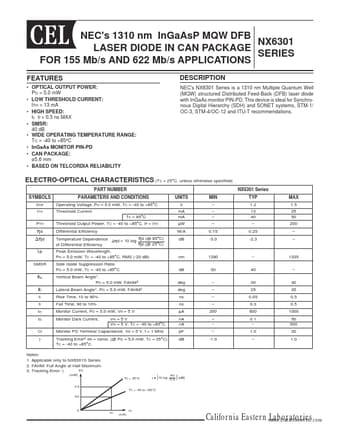

NX6301 Datasheet Preview — Preview of NX6301 PDF

Datasheet Details

Part number:

NX6301

Manufacturer:

CEL

File Size:

98.92 KB

Description:

Laser diode.
