NX6309GH - LASER DIODE

California Eastern Labs

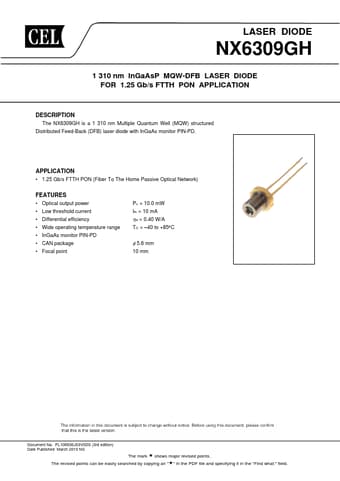

NX6309GH Datasheet Preview — Preview of NX6309GH PDF

Datasheet Details

Part number	NX6309GH
Manufacturer	California Eastern Labs
File Size	191.98 KB
Description	LASER DIODE
Datasheet	NX6309GH-CaliforniaEasternLabs.pdf

NX6309GH Product details

Description

The NX6309GH is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD. 1.25 Gb/s FTTH PON (Fiber To The Home Passive Optical Network)

Features

Optical output power.
Low threshold current.
Differential efficiency.
Wide operating temperature range.
InGaAs monitor PIN-PD.
CAN package.
Focal point Po = 10.0 mW lth = 10 mA ηd = 0.40 W/A TC =.
40 to +85°C φ 5.6 mm 10 mm Document No. PL10693EJ03V0DS (3rd edition) Date Published March 2010 NS The mark shows major revised points. The revised points can be easily searched by copying an "" in the PDF file and specifyin.
