NX6314EH - LASER DIODE

California Eastern Labs

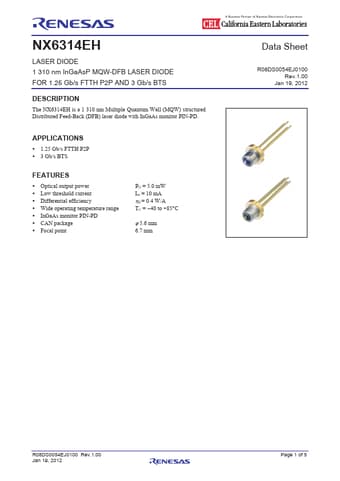

NX6314EH Datasheet Preview — Preview of NX6314EH PDF

Datasheet Details

Part number	NX6314EH
Manufacturer	California Eastern Labs
File Size	903.57 KB
Description	LASER DIODE
Datasheet	NX6314EH-CaliforniaEasternLabs.pdf

NX6314EH Product details

Description

The NX6314EH is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD. 1.25 Gb/s FTTH P2P 3 Gb/s BTS

Features

Optical output power Low threshold current Differential efficiency Wide operating temperature range InGaAs monitor PIN-PD CAN package Focal point PO = 5.0 mW Ith = 10 mA ηd = 0.4 W/A TC =.
40 to +85°C φ 5.6 mm 6.7 mm R08DS0054EJ0100 Rev.1.00 Jan 19, 2012 Page 1 of 5 A Business Partner of Renesas Electronics Corporation. NX6314EH Chapter Title.
