NX6307 Datasheet - CEL

NX6307 LASER DIODE

NX6307 Features

* OPTICAL OUTPUT POWER: Po = 7.0 mW

* LOW THRESHOLD CURRENT: lth = 10 mA @ TC = 25°C

* HIGH SPEED: tr, tf = 0.2 ns MAX.

* SIDE MODE SUPPRESSION RATIO: SMSR = 45 dB @ TYP.

* InGaAs MONITOR PIN-PD

* CAN PACKAGE: φ 5.6 mm

* BASED ON TELCORDIA RELI

NX6307_CEL.pdf

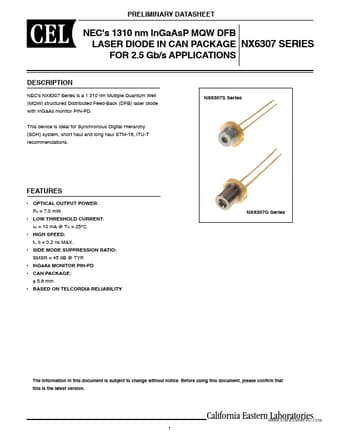

Preview of NX6307 PDF
NX6307 Datasheet Preview Page 2 NX6307 Datasheet Preview Page 3

Datasheet Details

Part number:

NX6307

Manufacturer:

CEL

File Size:

398.11 KB

Description:

Laser diode.
