NX6306

LASER DIODE

CEL

NX6306 Features

* OPTICAL OUTPUT POWER: Po = 5.0 mW

* LOW THRESHOLD CURRENT: lth = 10 mA @ TC = 25°C

* HIGH SPEED: tr, tf = 0.5 ns MAX.

* 40% REDUCTION OF MOUNTING AREA: 5-pin SOP × 2

* SIDE MODE SUPPRESSION RATIO: SWSR = 45 dB @ TYP.

* InGaAs MONITOR PIN-PD

NX6306 General Description

NEC's NX6306 Series is a 1 310 nm Multiple Quantum Well (MQW) structured Distributed Feed-Back (DFB) laser diode with InGaAs monitor PIN-PD. This device is ideal for Gigabit Ethernet and Synchronous Digital Hierarchy (SDH) system STM-1 (I-1, S-1.1, L-1.1), STM-4 (I-4, S-4.1, L-4.1), ITU-T recommenda.

NX6306 Datasheet (385.08 KB)

Rating: 1 ★ (2 votes)

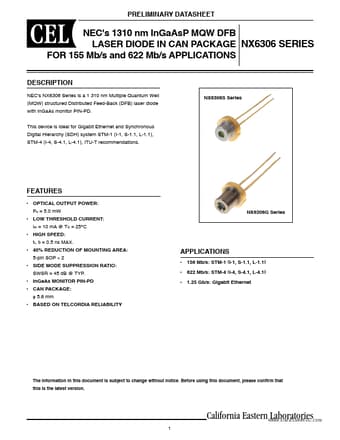

NX6306 Datasheet Preview — Preview of NX6306 PDF

Datasheet Details

Part number:

NX6306

Manufacturer:

CEL

File Size:

385.08 KB

Description:

Laser diode.
