Part number:
NX7563JB-BC
Manufacturer:
CEL
File Size:
0.97 MB
Description:
Ingaasp mqw dc-pbh pulsed laser diode module.

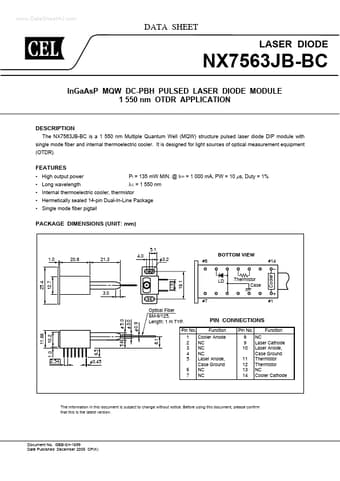

NX7563JB-BC Datasheet (0.97 MB)
* High output power
* Long wavelength Pf = 135 mW MIN. @ IFP = 1 000 mA, PW = 10 µs, Duty = 1% λ C = 1 550 nm
* Internal thermoelectric cooler, thermistor
* Hermetically sealed 14-pin Dual-In-Line Package
* Single mode fiber pigtail PACKAGE DIMENSIONS (UNIT:
NX7563JB-BC Datasheet (0.97 MB)
NX7563JB-BC
CEL
0.97 MB
Ingaasp mqw dc-pbh pulsed laser diode module.
