UPD5702TU

Si LD MOS POWER AMPLIFIER

CEL

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	California Eastern Laboratories (CEL)	UPD5702TU	UPD5702TU-E2-A	IC AMP 802.15.1 2.4GHZ 8MINIMOLD	DigiKey	0	5000 units	$1.09	🛒 Buy Now

📥 Download PDF (176.33 KB)

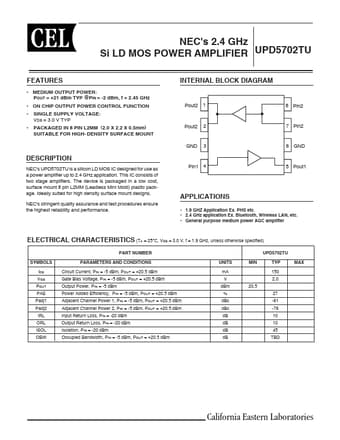

UPD5702TU Datasheet Preview Page 1 — Preview of UPD5702TU Datasheet

Datasheet Details

Part number:

UPD5702TU

Manufacturer:

CEL

File Size:

176.33 KB

Download:

📄 Download UPD5702TU Datasheet PDF

Description:

Si ld mos power amplifier.
NEC's 2.4 GHz Si LD MOS POWER AMPLIFIER UPD5702TU FEATURES * MEDIUM OUTPUT POWER: POUT = +21 dBm TY.
NEC's UPD5702TU is a silicon LD MOS IC designed for use as a power amplifier up to 2.4 GHz applicati.

✔ UPD5702TU Features

MEDIUM OUTPUT POWER: POUT = +21 dBm TYP @PIN = -2 dBm, f = 2.45 GHz
ON CHIP OUTPUT POWER CONTROL FUNCTION
SINGLE SUPPLY VOLTAGE: VDS = 3.0 V TYP
PACKAGED IN 8 PIN

✔ UPD5702TU Application

1.9 GHZ Application Ex. PHS etc.
2.4 GHz application Ex. Bluetooth, Wireless LAN, etc.
