CEU3099 Datasheet, Transistor, CET

CEU3099 Features

  • Transistor 30V , 26A , RDS(ON) = 10mΩ @VGS = 10V. RDS(ON) = 17mΩ @VGS = 4.5V. -30V , -19A , RDS(ON) = 20mΩ @VGS = 10V. RDS(ON) = 30mΩ @VGS = 4.5V. Super high dense cell design for extremely low R

PDF File Details

Part number:

CEU3099

Manufacturer:

CET

File Size:

957.11kb

Download:

📄 Datasheet

Description:

Dual enhancement mode field effect transistor.

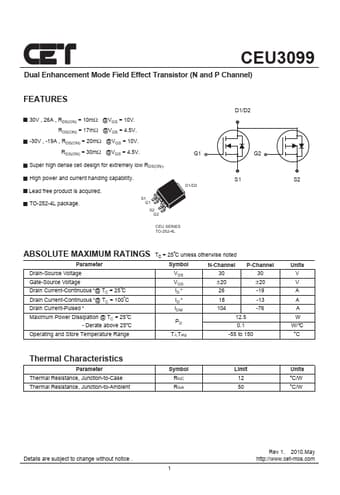

Datasheet Preview: CEU3099 📥 Download PDF (957.11kb)
Page 2 of CEU3099 Page 3 of CEU3099
