CTLM16PS05-R3

P-Channel MOSFET

CTLM16PS05-R3 Features

* Drain-Source Breakdown Voltage VDSS - 50 V

* Drain-Source On-Resistance RDS(ON) 2Ω, at VGS= - 10V, IDS= - 100mA RDS(ON) 2Ω, at VGS= - 5.0V, IDS= - 100mA ℃

* Continuous Drain Current at TA=25 ID = - 160mA

* Advanced high cell density Trench Technology

* RoHS C

CTLM16PS05-R3 General Description

The CTLM16PS05-R3 uses high performance Trench Technology to provide excellent RDS(ON) and low gate charge which is suitable for most of the synchronous buck converter applications . Package Outline Schematic Drain Drain Gate Source Gate Source CT Micro Proprietary & Confidential Page 1 R.

CTLM16PS05-R3 Datasheet (538.11 KB)

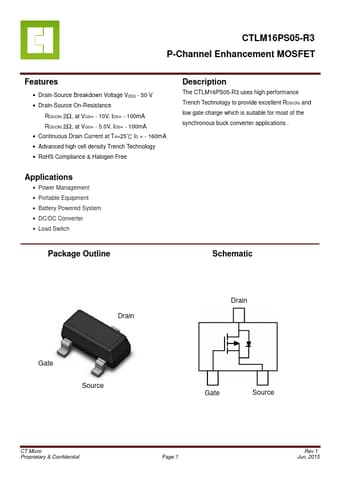

Preview of CTLM16PS05-R3 PDF

Datasheet Details

Part number:

CTLM16PS05-R3

Manufacturer:

CT Micro

File Size:

538.11 KB

Description:

P-channel mosfet.
