CY7C1460AV33 - 36-Mbit Pipelined SRAM

Product Overview

Cypress Semiconductor

Part number	CY7C1460AV33
Manufacturer	Cypress Semiconductor
File Size	833.98 KB
Description	36-Mbit Pipelined SRAM
Datasheet	CY7C1460AV33 Datasheet

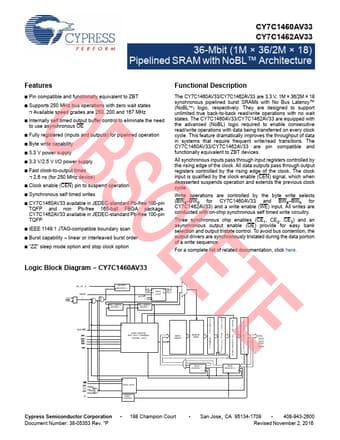

Additional preview pages of the CY7C1460AV33 datasheet.

The CY7C1460AV33/CY7C1462AV33 are 3.3 V, 1M × 36/2M × 18 synchronous pipelined burst SRAMs with No Bus Latency™ (NoBL logic, respectively.

Pin compatible and functionally equivalent to ZBT.
Supports 250 MHz bus operations with zero wait states.
Available speed grades are 250, 200 and 167 MHz.
Internally self timed output buffer control to eliminate the need to use asynchronous OE.
Fully registered (inputs and outputs) for pipelined operation.
Byte write capability.
3.3 V power supply.
3.3 V/2.5 V I/O power supply.
Fast clock-to-output times.
2.6 ns (for 250 MHz device).
Clock.
