CY7C1460BV25 - 36-Mbit (1 M x 36/2 M x 18) Pipelined SRAM

Product Overview

Cypress Semiconductor

Part number	CY7C1460BV25
Manufacturer	Cypress Semiconductor
File Size	533.66 KB
Description	36-Mbit (1 M x 36/2 M x 18) Pipelined SRAM
Datasheet	CY7C1460BV25 Datasheet

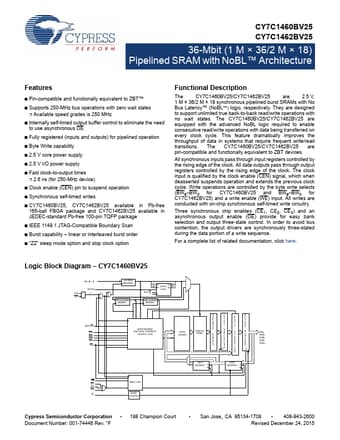

Additional preview pages of the CY7C1460BV25 datasheet.

Pin-compatible and functionally equivalent to ZBT™.
Supports 250-MHz bus operations with zero wait states.
Available speed grades is 250 MHz.
Internally self-timed output buffer control to eliminate the need to use asynchronous OE.
Fully registered (inputs and outputs) for pipelined operation.
Byte Write capability.
2.5 V core power supply.
2.5 V I/O power supply.
Fast clock-to-output times.
2.6 ns (for 250-MHz device).
Clock enable (CEN) p.
