MTE020N10RF3 - N-Channel Enhancement Mode Power MOSFET

Datasheet Summary

Features

  • Low On Resistance.
  • Simple Drive Requirement.
  • Low Gate Charge.
  • Fast Switching Characteristic.
  • RoHS compliant package BVDSS ID@VGS=10V, TC=25°C ID@VGS=10V, TA=25°C RDS(ON)@VGS=10V, ID=20A 100V 30A 8A 20mΩ Equivalent Circuit MTE020N10RF3 Outline TO-263 Ordering Information Device MTE020N10RF3-0-T7-G Package TO-263 (Pb-free lead plating and halogen-free package) Shipping 800 pcs / Tape & Reel Environment friendly grade : S for RoHS compliant pr.

📥 Download Datasheet

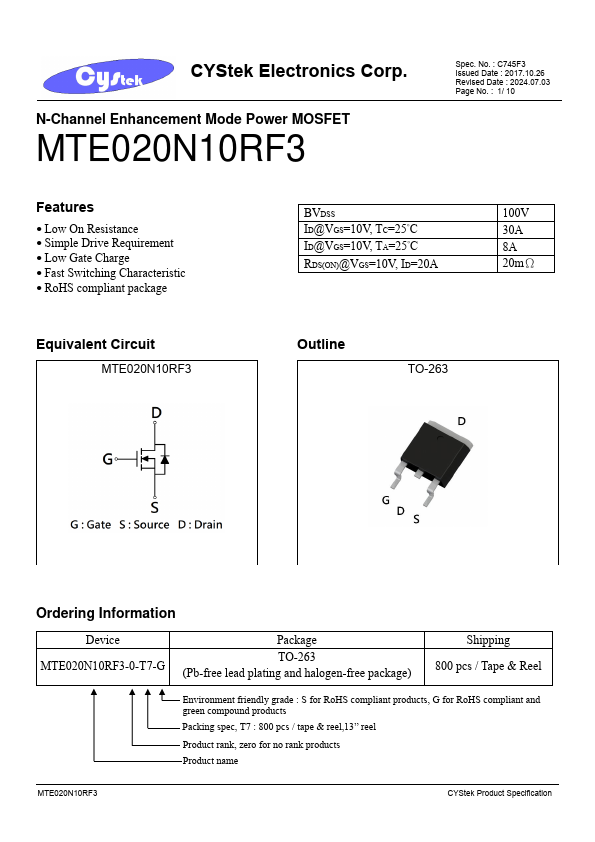

Datasheet preview – MTE020N10RF3

Datasheet Details

Part number MTE020N10RF3
Manufacturer Cystech Electonics
File Size 639.29 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet MTE020N10RF3 Datasheet

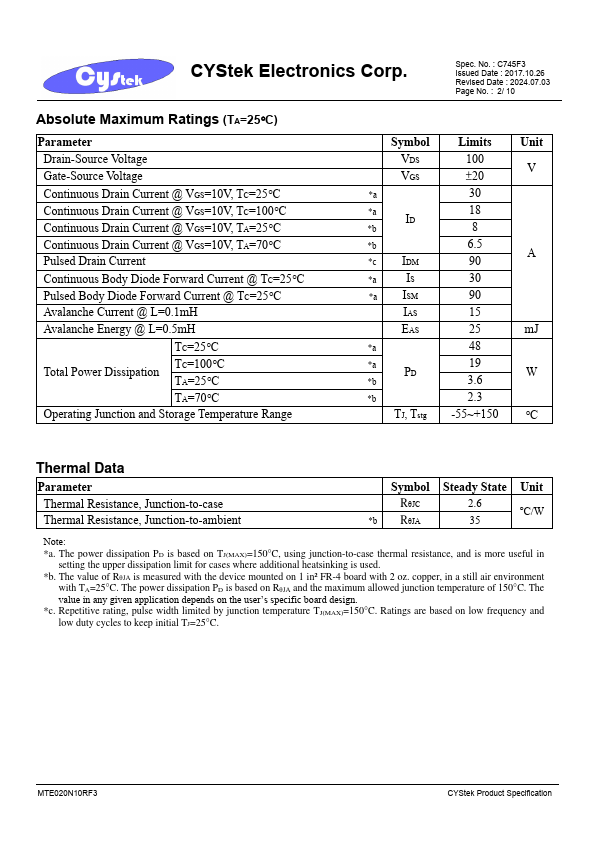

Additional preview pages of the MTE020N10RF3 datasheet.

📁 Similar Datasheet

  • MTE030N15RH8 - N-Channel Enhancement Mode Power MOSFET (CYStech Electronics)
  • MTE100N10KRH8 - N-Channel Enhancement Mode Power MOSFET (CYStech)
  • MTE1011P - Metal Can Infrarred Emitter (Marktech Corporate)
  • MTE1040 - INFRARED LED (Marktech Corporate)
  • MTE1050A - INFRARED LED (Marktech Corporate)
  • MTE1070A - INFRARED LED (Marktech Corporate)
  • MTE1080 - INFRARED LED (Marktech Corporate)
  • MTE108CL - INFRAED EMITTER (Marktech Corporate)
  • MTE108CL-J - 5mm Metal Can IR Emitter (Marktech Corporate)
  • MTE1090 - INFRARED LED (Marktech Corporate)
Other Datasheets by Cystech Electonics

Full PDF Text Transcription

Click to expand full text
CYStek Electronics Corp. N-Channel Enhancement Mode Power MOSFET MTE020N10RF3 Spec. No. : C745F3 Issued Date : 2017.10.26 Revised Date : 2024.07.03 Page No.
