DMN2053UQ - N-CHANNEL ENHANCEMENT MODE MOSFET

DMN2053UQ Description

AADDVVAANNCCEEDDI INFNFOORRMMAATITIOONN Product Summary BVDSS 20V RDS(ON) max 29m @ VGS = 10V 35m @ VGS = 4.5V ID max TA = +25°C 6.5A 5.4A Desc.
This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for.

DMN2053UQ Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

DMN2053UQ Applications

* Applications
* General purpose interfacing switches

📥 Download Datasheet

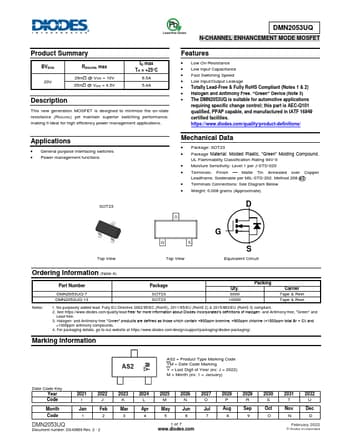

Preview of DMN2053UQ PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DMN2053UQ
Manufacturer
DIODES ↗
File Size
567.24 KB
Datasheet
DMN2053UQ-DIODES.pdf
Description
N-CHANNEL ENHANCEMENT MODE MOSFET
