DMN2053UWQ

20V N-CHANNEL MOSFET

DMN2053UWQ Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* The DMN2053UWQ is suitable for automotive applications requiring specific change control; this pa

DMN2053UWQ General Description

and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* General-purpose interfacing switches
* Power-management functions
* DC-DC converters
* Analog switches .

DMN2053UWQ Datasheet (680.82 KB)

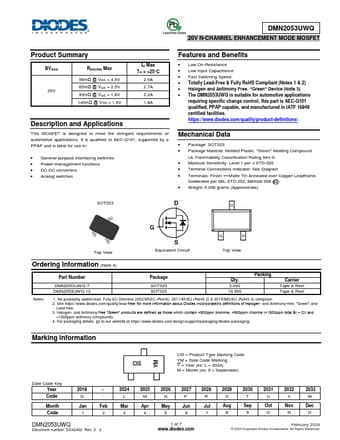

Preview of DMN2053UWQ PDF

Datasheet Details

Part number:

DMN2053UWQ

Manufacturer:

DIODES ↗

File Size:

680.82 KB

Description:

20v n-channel mosfet.
DMN2053UWQ 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) Max 56mΩ @ VGS = 4.5V 65mΩ @ VGS = 2.5V 93mΩ @ VGS = 1.8V 140mΩ .
