DMN2053UW

20V N-CHANNEL MOSFET

DMN2053UW Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3) Mechanical Data

* Case: SOT323

* Case Material: Molded Plastic, "Green" Molding Compound. UL Fl

DMN2053UW General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* General Purpose Interfacing Switch
* Power Management Functions
* DC-DC Conve.

DMN2053UW Datasheet (483.65 KB)

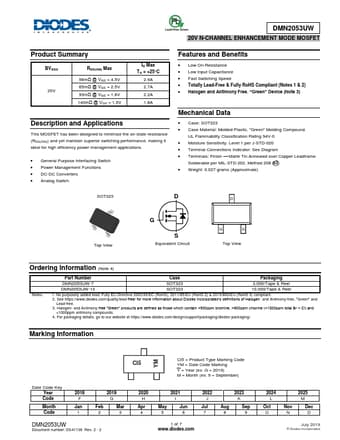

Preview of DMN2053UW PDF

Datasheet Details

Part number:

DMN2053UW

Manufacturer:

DIODES ↗

File Size:

483.65 KB

Description:

20v n-channel mosfet.
NEW PRODUCT YM DMN2053UW 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) Max 56mΩ @ VGS = 4.5V 65mΩ @ VGS = 2.5V 93mΩ @ VG.
