DMP1012USS Datasheet, Mosfet, DIODES

DMP1012USS Features

  • Mosfet BVDSS -12V RDS(ON) Max 15mΩ @ VGS = -4.5V 20mΩ @ VGS = -3.7V 25mΩ @ VGS = -3.3V 30mΩ @ VGS = -2.5V 40mΩ @ VGS = -1.8V ID Max TA = +25°C -8.5A -7.3A -6.6A -6.0A -5.2A Description and

PDF File Details

Part number:

DMP1012USS

Manufacturer:

DIODES ↗

File Size:

370.19kb

Download:

📄 Datasheet

Description:

12v p-channel mosfet. and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performanc

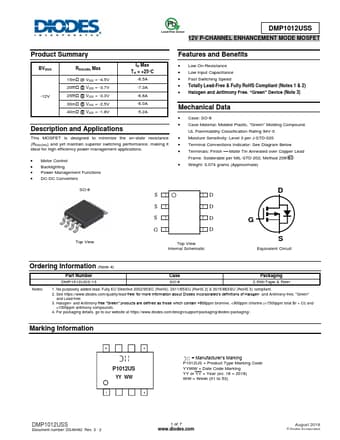

Datasheet Preview: DMP1012USS 📥 Download PDF (370.19kb)
Page 2 of DMP1012USS Page 3 of DMP1012USS

DMP1012USS Application

  • Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal
