DMP1012UCB9, P-Channel MOSFET

NEW PRODUCT AADDVVAANNCCEED IINNFFOORRMMAATTIIOONN DMP1012UCB9 P-CHANNEL ENHANCEMENT MODE MOSFET Product Summary (Typ.@ VGS = -4.5V, TA = +25°C) V.
This 3rd generation Lateral MOSFET (LD-MOS) is engineered to minimize on-state losses and switch ultra-fast, making it ideal for high efficiency power.

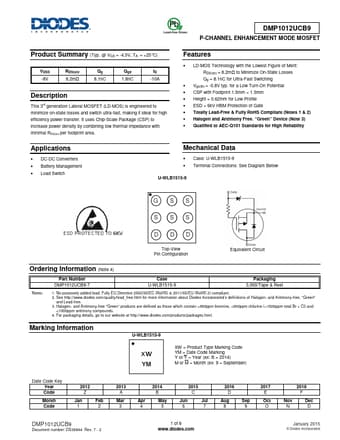

datasheet Preview Page 1 from Datasheet4u.com

DMP1012UCB9-Diodes.pdf

DMP1012UCB9 Datasheet Preview — Preview of DMP1012UCB9 PDF

Datasheet Details

Part number:

DMP1012UCB9

Manufacturer:

DIODES ↗

File Size:

226.69 KB

Description:

P-Channel MOSFET

Features

* LD-MOS Technology with the Lowest Figure of Merit: RDS(on) = 8.2mΩ to Minimize On-State Losses Qg = 8.1nC for Ultra-Fast Switching
* Vgs(th) = -0.8V typ. for a Low Turn-On Potential
* CSP with Footprint 1.5mm × 1.5mm
* Height = 0.62mm for Low Profile
* ESD =

Applications

* DC-DC Converters
* Battery Management
* Load Switch Mechanical Data
* Case: U-WLB1515-9
* Terminal Connections: See Diagram Below U-WLB1515-9 GSS S SS D DD Top-View Pin Configuration Equivalent Circuit Ordering Information (Note 4) Notes: Part Numbe
