* Halogen-free
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* DC/DC Conversion - Low-Side Switch
* Notebook PC
* Gaming D G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain
DTP9530
Din-Tek
309.61 KB
N-channel mosfet.

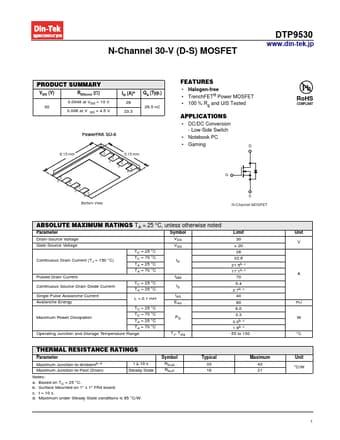

N-Channel 30-V (D-S) MOSFET
DTP9530
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.0048 at VGS = 10 V 30
0.006 at V GS = 4.5 V
ID (A)a 26 .
