* DT-Trench Power MOSFET
* 100 % Rg and UIS Tested APPLICATIONS
* Load Switch S G GDS Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous
DTP9806F Datasheet (577.94 KB)
DTP9806F
Din-Tek
577.94 KB
P-channel mosfet.

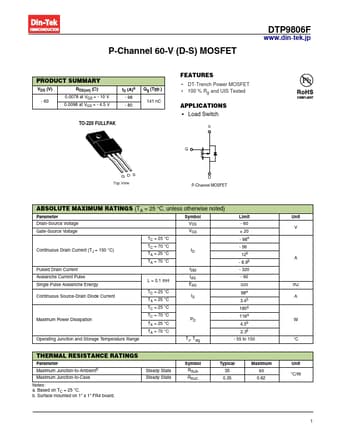

P-Channel 60-V (D-S) MOSFET
DTP9806F
www.din-tek.jp
PRODUCT SUMMARY
VDS (V)
RDS(on) ()
- 60
0.0078 at VGS = - 10 V
0.0098 at VGS = - 4.5 V
ID.
