DTP9604F, DTP9604 N-Channel MOSFET

DTP9604F Description

DTP9604/DTP9604F N-Channel 60 V (D-S) MOSFET www.din-tek.jp PRODUCT SUMMARY VDS (V) 60 RDS(on) () 0.027 at VGS = 10 V 0.029 at VGS = 6 V 0.030 a.

DTP9604F Features

* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

DTP9604F Applications

* Primary Side Switch
* POL
* Synchronous Rectifier
* DC/DC Converter
* Amusement System
* Industrial
* LED Backlighting ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage Gate-Source Voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DTP9604F, DTP9604. Please refer to the document for exact specifications by model.

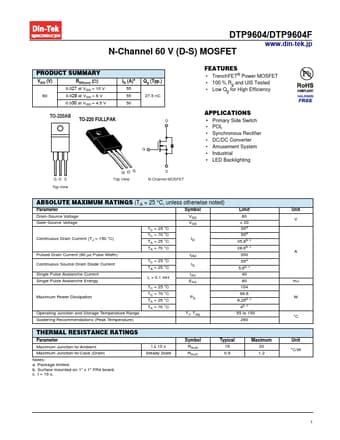

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTP9604F, DTP9604
Manufacturer
Din-Tek
File Size
377.06 KB
Datasheet
DTP9604-DinTek.pdf
Description
N-Channel MOSFET
Note
This datasheet PDF includes multiple part numbers: DTP9604F, DTP9604.
Please refer to the document for exact specifications by model.
