* TrenchFET® Power MOSFET
* 175 °C Junction Temperature
* Low Thermal Resistance Package
* 100 % Rg Tested APPLICATIONS
* Isolated DC/DC Converters D RoHS COMPLIANT GD S Top View G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TC = 25 °C, unless otherwise no
DTP9820
Din-Tek
278.86 KB
N-channel mosfet.

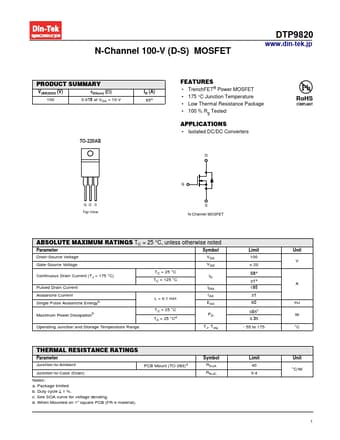

N-Channel 100-V (D-S) MOSFET
DTP9820
www.din-tek.jp
PRODUCT SUMMARY
V(BR)DSS (V) 100
rDS(on) (Ω) 0.018 at VGS = 10 V
ID (A) 65a
TO-220AB
FEATUR.
