DTP9803 P-Channel MOSFET

DTP9803 Description

P-Channel 100 V (D-S) MOSFET DTP9803 www.din-tek.jp PRODUCT SUMMARY VDS (V) - 100 RDS(on) () Max.0.214 at VGS = - 10 V 0.221 at VGS = - 4.5 V I.

DTP9803 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested

DTP9803 Applications

* Power Switch
* Load Switch in High Current Applications
* DC/DC Converters GD S Top View D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted) Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS Continuous Drain Current (TJ

📥 Download Datasheet

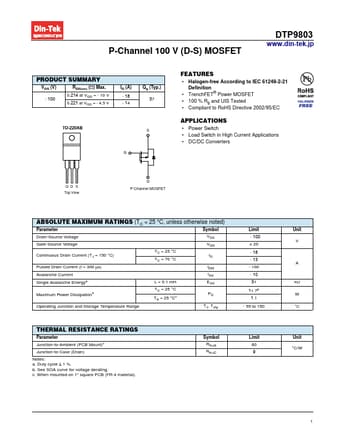

Preview of DTP9803 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTP9803
Manufacturer
Din-Tek
File Size
332.75 KB
Datasheet
DTP9803-DinTek.pdf
Description
P-Channel MOSFET
