* TrenchFET® Power MOSFET
* 100 % Rg and UIS Tested
* Low Qg for High Efficiency APPLICATIONS
* Primary Side Switch
* POL
* Synchronous Rectifier
* DC/DC Converter
* Amusement System
* Industrial
* LED Backlighting ABSO
DTP9604
Din-Tek
377.06 KB
N-channel mosfet.

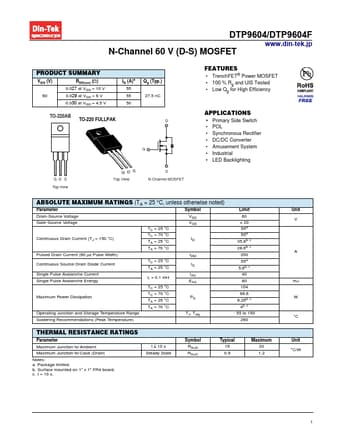

DTP9604/DTP9604F
N-Channel 60 V (D-S) MOSFET
www.din-tek.jp
PRODUCT SUMMARY
VDS (V) 60
RDS(on) () 0.027 at VGS = 10 V 0.029 at VGS = 6 V 0.030 a.
