DTS5212 Dual N-Channel MOSFET

DTS5212 Description

Dual N-Channel 20 V (D-S) MOSFET DTS5212 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 20 0.310at VGS = 4.5 V 0.433at VGS = 2.5 V SOT-563 .

DTS5212 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC D1 D2 S1 1 G1 2 6 D1 5 G2 D2 3 4 S2 Top View G1 G2 S1 S2 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) P

📥 Download Datasheet

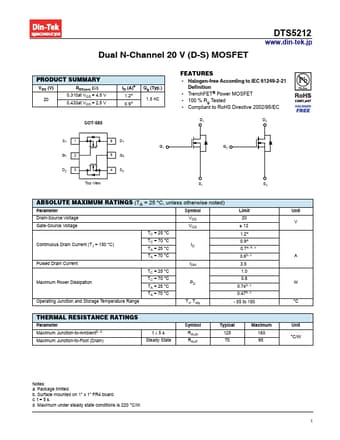

Preview of DTS5212 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTS5212
Manufacturer
Din-Tek
File Size
625.81 KB
Datasheet
DTS5212-DinTek.pdf
Description
Dual N-Channel MOSFET
