DTS5211 Dual P-Channel MOSFET

DTS5211 Description

Dual P-Channel 20-V (D-S) MOSFET DTS5211 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 20 0.692 at VGS = - 4.5 V 0.878 at VGS = - 2.5 V I.

DTS5211 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC RoHS COMPLIANT SOT-563 S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View S1 S2 G1 G2 D1 D2 ABSOLUTE MAXIMUM RATINGS TA = 25 °C, u

📥 Download Datasheet

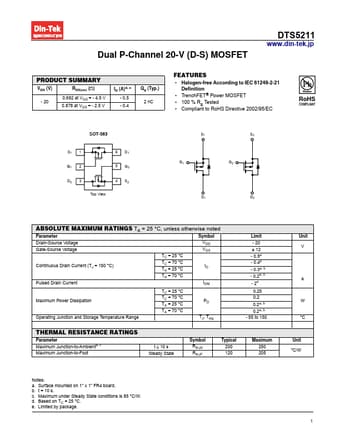

Preview of DTS5211 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTS5211
Manufacturer
Din-Tek
File Size
1.13 MB
Datasheet
DTS5211-DinTek.pdf
Description
Dual P-Channel MOSFET
