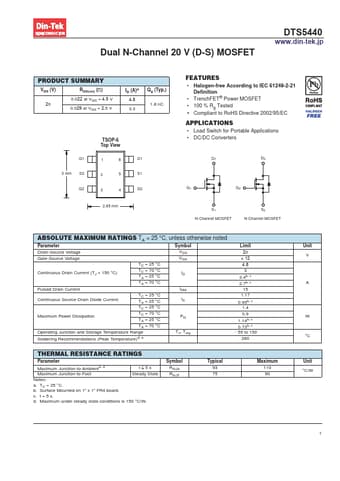

DTS5440 Datasheet, Mosfet, Din-Tek

DTS5440 Features

• Mosfet
• Halogen-free According to IEC 61249-2-21 Definition
• TrenchFET® Power MOSFET
• 100 % Rg Tested
• Compliant to RoHS Directive 2002/95/EC APPLICATIONS <

PDF File Details

Part number:

DTS5440

Manufacturer:

Din-Tek

File Size:

276.18kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfet.

DTS5440 Application

• Applications
• Load Switch for Portable Applications
• DC/DC Converters D1 D2 G1 G2 S1 N-Channel MOSFET S2 N-Channel MOSFET ABSO
