DTS5606 N- and P-Channel MOSFET

DTS5606 Description

DTS5606 www.din-tek.jp N- and P-Channel 20 V (D-S) MOSFET PRODUCT SUMMARY N-Channel P-Channel VDS (V) 20 - 20 RDS(on) (Ω) 0.299 at VGS = 4.5 V 0.4.

DTS5606 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested
* Compliant to RoHS Directive 2002/95/EC SOT-563 S1 1 6 D1 G1 2 5 G2 D2 3 4 S2 Top View D1 S2 G2 G1 S1 N-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM

📥 Download Datasheet

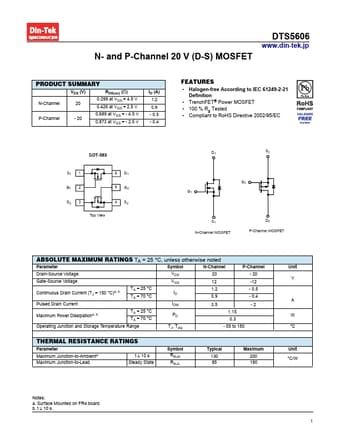

Preview of DTS5606 PDF
