DTS5441 Dual P-Channel MOSFET

DTS5441 Description

Dual P-Channel 20 V (D-S) MOSFET DTS5441 www.din-tek.jp PRODUCT SUMMARY VDS (V) - 20 RDS(on) () 0.070 at VGS = - 4.5V 0.096 at VGS = - 2.5 V ID .

DTS5441 Features

* Halogen-free According to IEC 61249-2-21 Definition
* TrenchFET® Power MOSFET
* 100 % Rg Tested

DTS5441 Applications

* Load Switch for Portable Applications
* Battery Switch for Portable Devices
* Computers - Bus Switch - Load Switch S1 S2 G1 G2 2.85 mm D1 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symbol Limit Drain-Source Voltage

📥 Download Datasheet

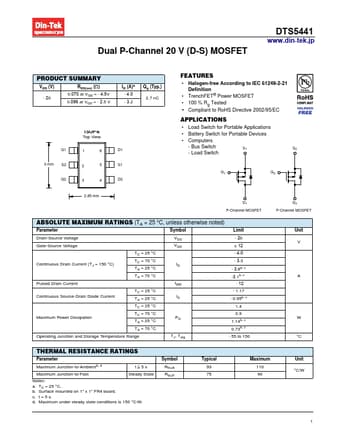

Preview of DTS5441 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTS5441
Manufacturer
Din-Tek
File Size
504.30 KB
Datasheet
DTS5441-DinTek.pdf
Description
Dual P-Channel MOSFET
