DMN2300UFB - 20V N-Channel MOSFET

Diodes Incorporated

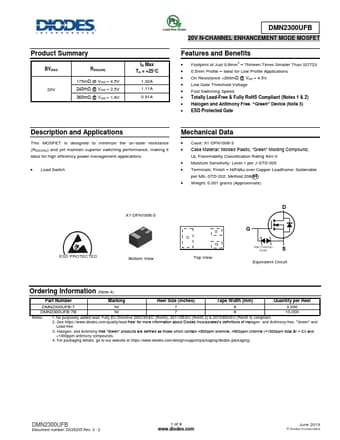

DMN2300UFB Datasheet Preview — Preview of DMN2300UFB PDF

Datasheet Details

Part number	DMN2300UFB
Manufacturer	DIODES ↗ Incorporated
File Size	434.56 KB
Description	20V N-Channel MOSFET
Datasheet	DMN2300UFB_DiodesIncorporated.pdf

DMN2300UFB Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Load Switch Mechanical Data Case: X1-DFN1006-3 Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish NiPdAu over Copper Leadframe; Solderable per M

Features

Footprint of Just 0.6mm2.
Thirteen Times Smaller Than SOT23.
0.5mm Profile.
Ideal for Low Profile.
