DMN2300UFD Datasheet - Diodes Incorporated

20V N-Channel MOSFET

DMN2300UFD Features

* Low Gate Threshold Voltage Fast Switching Speed “Lead Free”, RoHS Compliant (Note 1) Halogen and Antimony Free. "Green" Device (Note 2) ESD Protected Gate 2KV Qualified to AEC-Q101 Standards for High Reliability 20V Mechanical Data Descri

DMN2300UFD General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. * Load switch * * * * * Case: X1-DFN1212-3 .

DMN2300UFD Datasheet (335.41 KB)

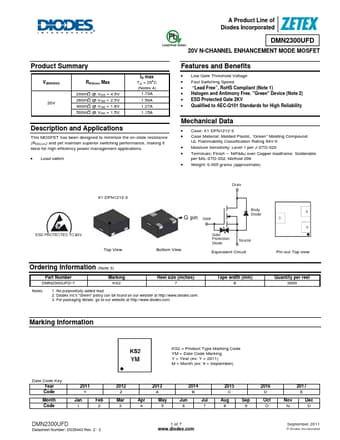

Preview of DMN2300UFD PDF

Datasheet Details

Part number:

DMN2300UFD

Manufacturer:

DIODES ↗ Incorporated

File Size:

335.41 KB

Description:

20v n-channel mosfet.
www.DataSheet.co.kr A Product Line of Diodes Incorporated DMN2300UFD 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS RDS(on) Max 200.
