DMN2310UWQ Datasheet - DIODES

20V N-CHANNEL MOSFET

DMN2310UWQ Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* The DMN2310UWQ is suitable for automotive applications requiring specific change control; this pa

DMN2310UWQ General Description

and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. * General purpose interfacing switches * Power-management functions * DC-DC c.

DMN2310UWQ Datasheet (834.56 KB)

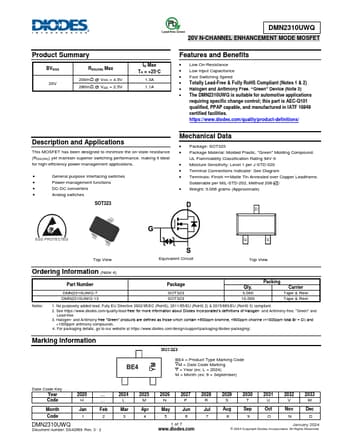

DMN2310UWQ Datasheet Preview — Preview of DMN2310UWQ PDF

Datasheet Details

Part number:

DMN2310UWQ

Manufacturer:

DIODES ↗

File Size:

834.56 KB

Description:

20v n-channel mosfet.
DMN2310UWQ 20V N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) Max 200mΩ @ VGS = 4.5V 280mΩ @ VGS = 2.5V ID Max TA = +25°C 1.3.
