DMN2300UFB4, 20V N-Channel MOSFET

Product Summary BVDSS 20V RDS(ON) 175m @ VGS = 4.5V 240m @ VGS = 2.5V 360m @ VGS = 1.8V 500m @ VGS = 1.5V ID TA = +25°C (Note 5) 1.30A 1.11A 0..
This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high.

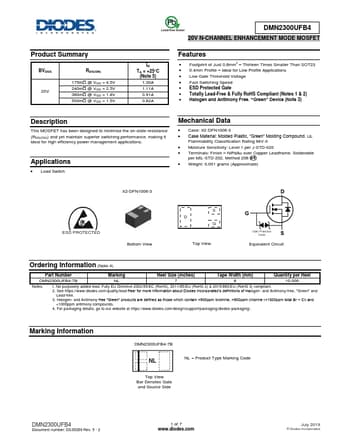

datasheet Preview Page 1 from Datasheet4u.com

DMN2300UFB4_DiodesIncorporated.pdf

DMN2300UFB4 Datasheet Preview — Preview of DMN2300UFB4 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number:

DMN2300UFB4

Manufacturer:

DIODES ↗ Incorporated

File Size:

447.65 KB

Description:

20V N-Channel MOSFET

Features

* Footprint of Just 0.6mm2
* Thirteen Times Smaller Than SOT23
* 0.4mm Profile

Applications

* Low Gate Threshold Voltage
* Fast Switching Speed
* ESD Protected Gate
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
