F59D1G81A

1 Gbit (128M x 8/ 64M x 16) 1.8V NAND Flash Memory

F59D1G81A Datasheet (1.17 MB)

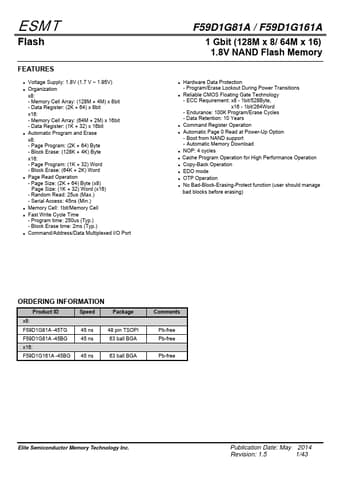

Preview of F59D1G81A PDF Datasheet

Datasheet Details

Part number:

F59D1G81A

Manufacturer:

Elite Semiconductor

File Size:

1.17 MB

Description:

1 gbit (128m x 8/ 64m x 16) 1.8v nand flash memory

F59D1G81A Features

* Voltage Supply: 1.8V (1.7 V ~ 1.95V)

* Organization x8: - Memory Cell Array: (128M + 4M) x 8bit - Data Register: (2K + 64) x 8bit x16: - Memory Cell Array: (64M + 2M) x 16bit - Data Register: (1K + 32) x 16bit

* Automatic Program and Erase x8: - Page Program: (2K + 64) Byte - Block Era

F59D1G81A General Description

The device is a 128Mx8bit with spare 4Mx8bit capacity (or 64Mx16bit with spare 2Mx16bit capacity). The device is offered in 1.8V VCC Power Supply. Its NAND cell provides the most cost-effective solution for the solid state mass storage market. The memory is divided into blocks that can be erased in.
