EL817A, EL817-G Datasheet - Everlight

EL817A, EL817-G, 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER EL817 Series Schematic .
The EL817 series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector.

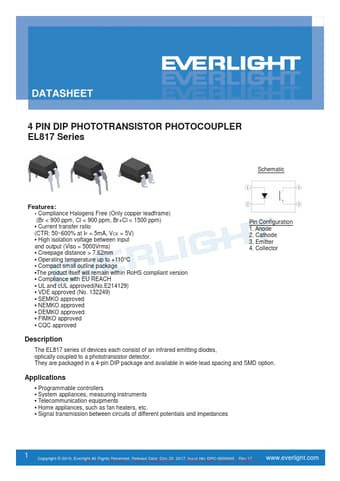

datasheet Preview Page 1 from Datasheet4u.com

EL817-G-Everlight.pdf

EL817A Datasheet Preview — This datasheet PDF includes multiple part numbers: EL817A, EL817-G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EL817A, EL817-G

Manufacturer:

Everlight

File Size:

940.44 KB

Description:

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

Note:

This datasheet PDF includes multiple part numbers: EL817A, EL817-G.
Please refer to the document for exact specifications by model.

Features

* Compliance Halogens Free (Only copper leadframe) (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
* Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)
* High isolation voltage between input and output (Viso = 5000Vrms)
* Creepage distance > 7.62mm

Applications

* Programmable controllers
* System appliances, measuring instruments
* Telecommunication equipments
* Home appliances, such as fan heaters, etc.
* Signal transmission between circuits of different potentials and impedances 1 Copyright © 2010, EverVligehrt . A
