EL8170 - Rail-to-Rail Input-Output Instrumentation Amplifier

EL8170 Description

DATASHEET EL8170, EL8173 Micropower, Single Supply, Rail-to-Rail Input-Output Instrumentation Amplifiers FN7490 Rev 8.00 August 11, 2015 The EL8170.

EL8170 Features

* 95µA maximum supply current
* Maximum offset voltage - 200µV (EL8170) - 1000µV (EL8173)
* Maximum 3nA input bias current
* 396kHz -3dB bandwidth (G = 10)
* 192kHz -3dB bandwidth (G = 100)
* Single supply operation - Input voltage range is rail-to-rai

EL8170 Applications

* Battery- or Solar-Powered Systems
* Strain Gauges
* Current Monitors
* Thermocouple Amplifiers Ordering Information PART NUMBER (Notes 2, 3) PART MARKING PACKAGE (RoHS Compliant) PKG. DWG. # EL8170FSZ (Note 1) 8170FSZ 8 Ld SOIC M8.15E EL8173FSZ (Note 1) (No l

📥 Download Datasheet

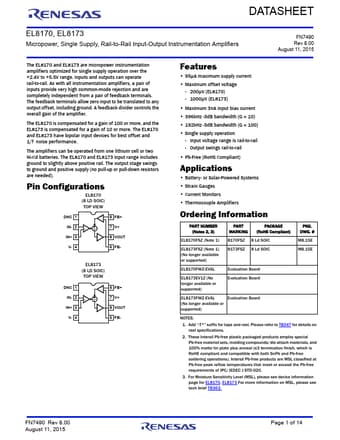

Preview of EL8170 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EL8170
Manufacturer
Renesas ↗
File Size
1.02 MB
Datasheet
EL8170-Renesas.pdf
Description
Rail-to-Rail Input-Output Instrumentation Amplifier
