EL817B-FVG Datasheet, photocoupler equivalent, Everlight

EL817B-FVG Features

• Photocoupler .
• Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)
• Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)
• High isolation voltag

PDF File Details

Part number:

EL817B-FVG

Manufacturer:

Everlight

File Size:

938.75kb

Download:

📄 Datasheet

Description:

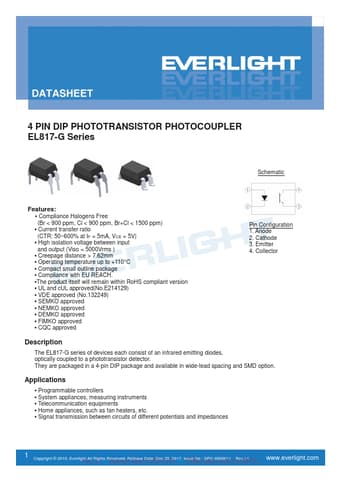

4 pin dip phototransistor photocoupler. The EL817-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are

EL817B-FVG Application

• Applications
• Programmable controllers
• System appliances, measuring instruments
• Telecommunication equipments
