EL817L - Technical Data Sheet Photocoupler

Everlight Electronics

EL817L Datasheet Preview — Preview of EL817L PDF

Datasheet Details

Part number	EL817L
Manufacturer	Everlight Electronics
File Size	358.03 KB
Description	Technical Data Sheet Photocoupler
Datasheet	EL817L_EverlightElectronics.pdf

EL817L Product details

Description

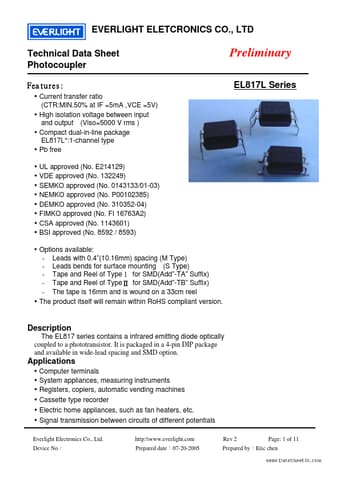

The EL817 series contains a infrared emitting diode optically coupled to a phototransistor. Computer terminals System appliances, measuring instruments Registers, copiers, automatic vending machines Cassette type recorder Electric home appliances, such as fan heaters, etc. Signal transmission between circuits of different potentials Ev

Features

Current transfer ratio (CTR:MIN.50% at IF =5mA ,VCE =5V).
High isolation voltage between input and output (Viso=5000 V rms ).
Compact dual-in-line package EL817L.
:1-channel type.
Pb free Preliminary EL817L Series.
UL approved (No. E214129).
VDE approved (No. 132249).
SEMKO approved (No. 0143133/01-03).
NEMKO approved (No. P00102385).
DEMKO approved (No. 310352-04).
FIMKO approved (No. FI 16763A2).
