EL817A-FVG

4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

EL817A-FVG Features

* .

* Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)

* Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)

* High isolation voltage between input and output (Viso = 5000Vrms )

* Creepage distance > 7.62mm

* Operating temperature

EL817A-FVG General Description

The EL817-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. Applications

* Programmable controllers

* System appliances, measur.

EL817A-FVG Datasheet (938.75 KB)

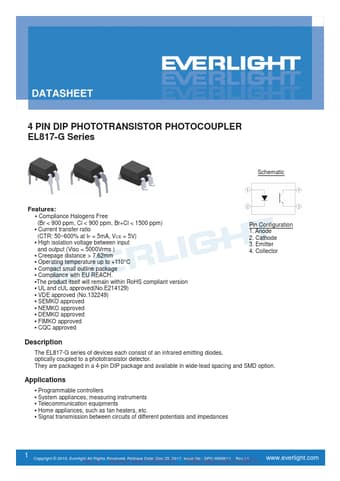

Preview of EL817A-FVG PDF

Datasheet Details

Part number:

EL817A-FVG

Manufacturer:

Everlight

File Size:

938.75 KB

Description:

4 pin dip phototransistor photocoupler.
