EL817D-FVG 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER

The EL817-G series of devices each consist of an infrared emitting diodes, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. Applications * Programmable controllers * System appliances, measur.

EL817D-FVG Features

* .

* Compliance Halogens Free (Br < 900 ppm, Cl < 900 ppm, Br+Cl < 1500 ppm)

* Current transfer ratio (CTR: 50~600% at IF = 5mA, VCE = 5V)

* High isolation voltage between input and output (Viso = 5000Vrms )

* Creepage distance > 7.62mm

* Operating temperature

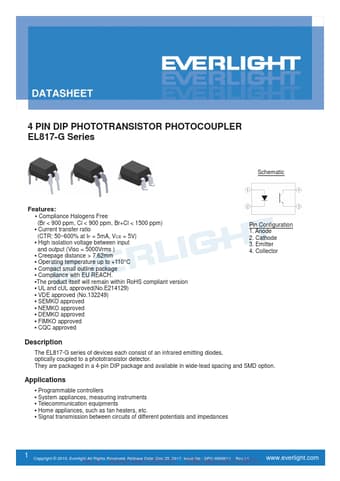

EL817-FVG-Everlight.pdf

EL817D-FVG Datasheet Preview — This datasheet PDF includes multiple part numbers: EL817D-FVG, EL817-FVG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EL817D-FVG, EL817-FVG

Manufacturer:

Everlight

File Size:

938.75 KB

Description:

4 pin dip phototransistor photocoupler.

Note:

This datasheet PDF includes multiple part numbers: EL817D-FVG, EL817-FVG.
Please refer to the document for exact specifications by model.
