EMB03N03HR - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor

Datasheet Summary

Description

N-CH BVDSS 30V RDSON (MAX.)@VGS=10V RDSON (MAX.)@VGS=4.5V 3.0mΩ 4.0mΩ ID @TC=25℃ 115A Single N Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source V

📥 Download Datasheet

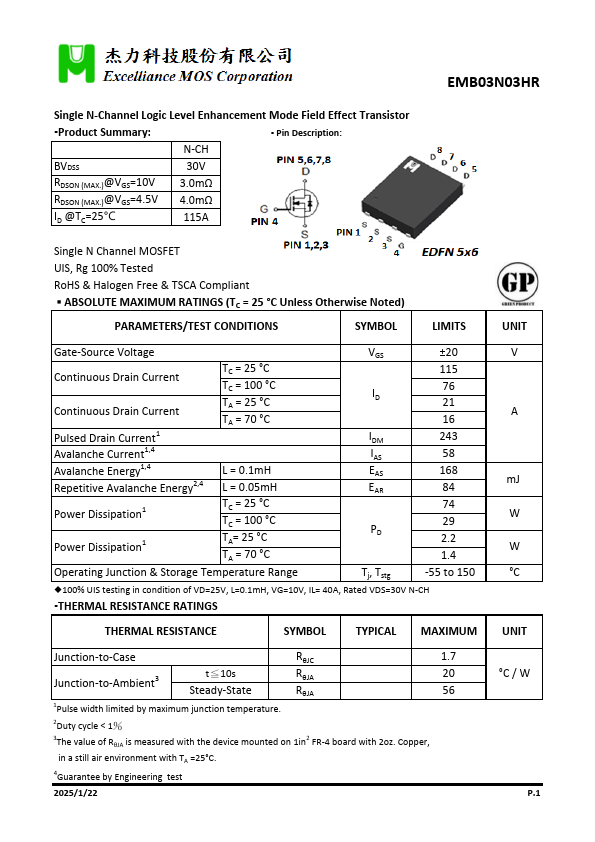

Datasheet preview – EMB03N03HR

Datasheet Details

Part number EMB03N03HR
Manufacturer Excelliance MOS
File Size 371.75 KB
Description Single N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet EMB03N03HR Datasheet

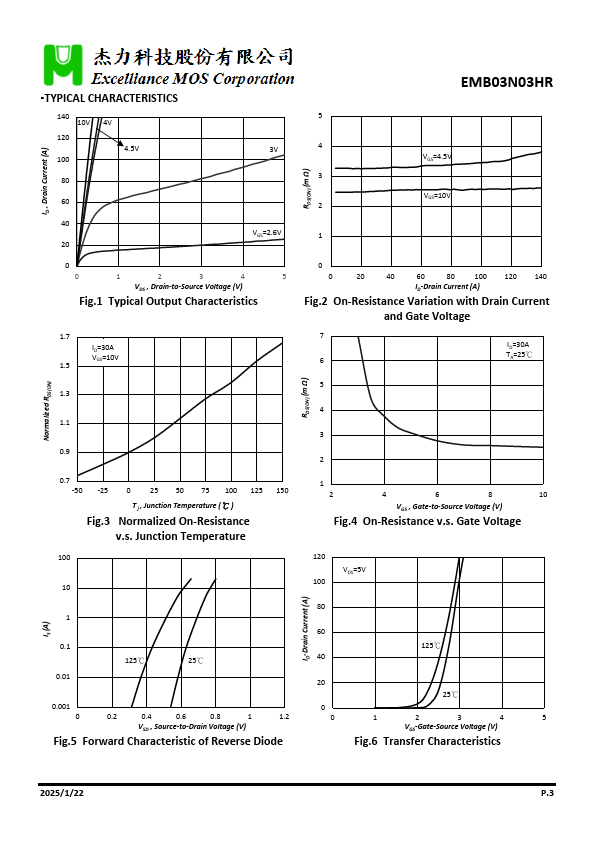

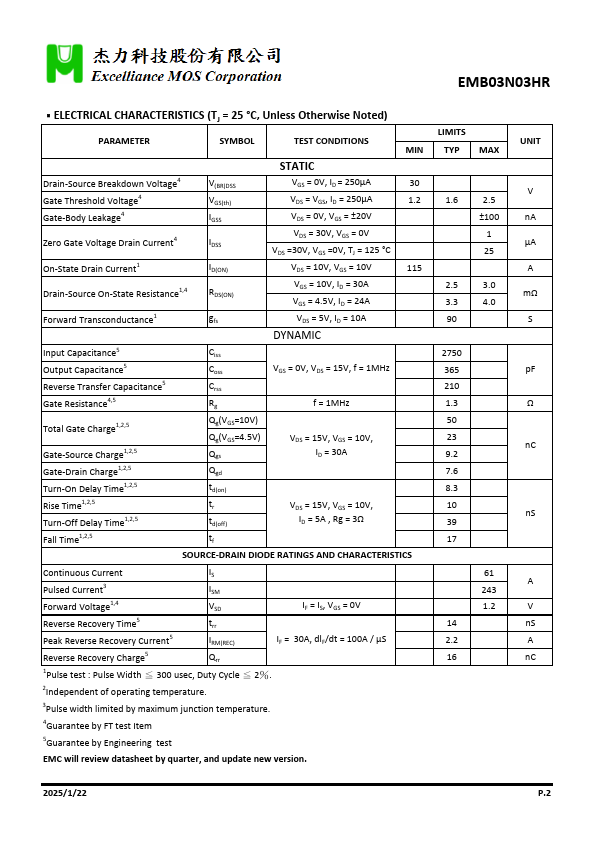

Additional preview pages of the EMB03N03HR datasheet.
