EMB03P03H - Single P-Channel Logic Level Enhancement Mode Field Effect Transistor

Excelliance MOS

📥 Download Datasheet

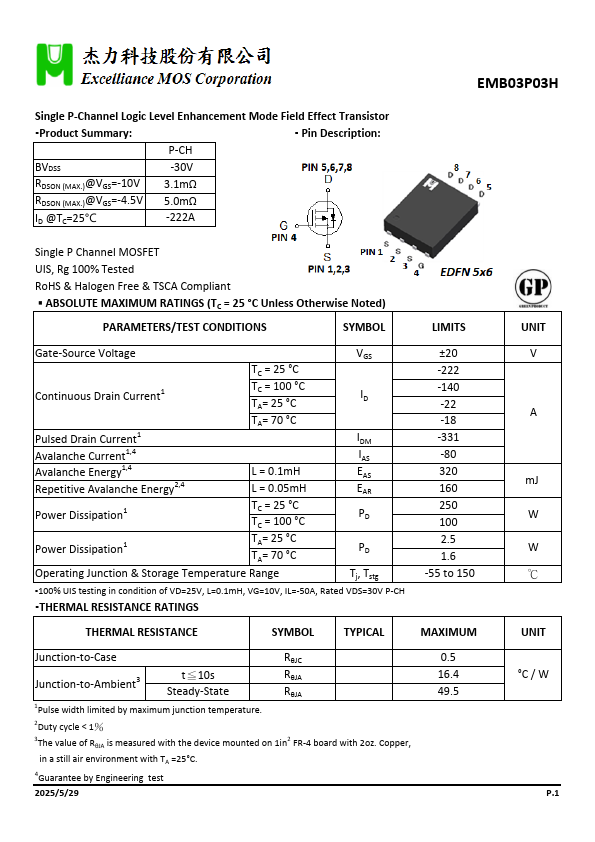

EMB03P03H Datasheet Preview — Preview of EMB03P03H PDF

Datasheet Details

Part number	EMB03P03H
Manufacturer	Excelliance MOS
File Size	339.08 KB
Description	Single P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	EMB03P03H-ExcellianceMOS.pdf

EMB03P03H Product details

Description

P-CH BVDSS -30V RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TC=25℃ 3.1mΩ 5.0mΩ -222A Single P Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage Continuous Drain Current1 Pulsed Drain Current1 Avalanche Current1,4 Avalanche Energy1,4 Repetitive Avalanche Energy2,4 TC = 25 °C TC = 100 °C TA= 25 °C TA= 70 °C L = 0.1mH L = 0.05mH Powe
