EMB07P03V - P-Channel Logic Level Enhancement Mode Field Effect Transistor

Product Overview

Excelliance MOS

Datasheet Details

Part number	EMB07P03V
Manufacturer	Excelliance MOS
File Size	337.00 KB
Description	P-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet	EMB07P03V Datasheet

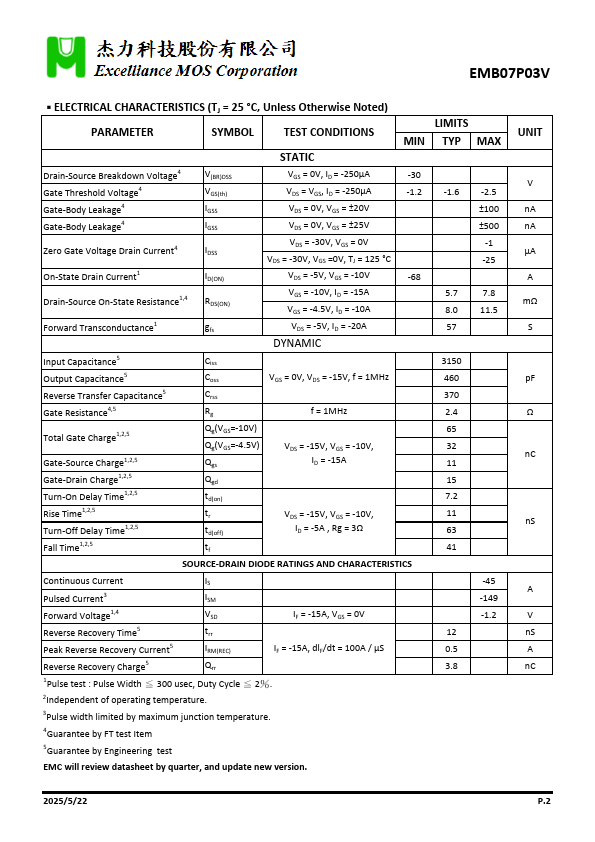

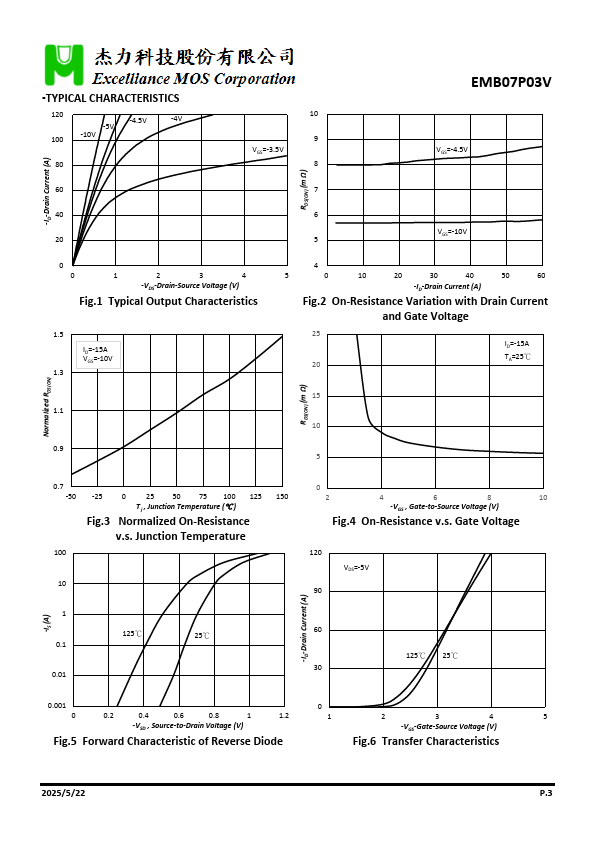

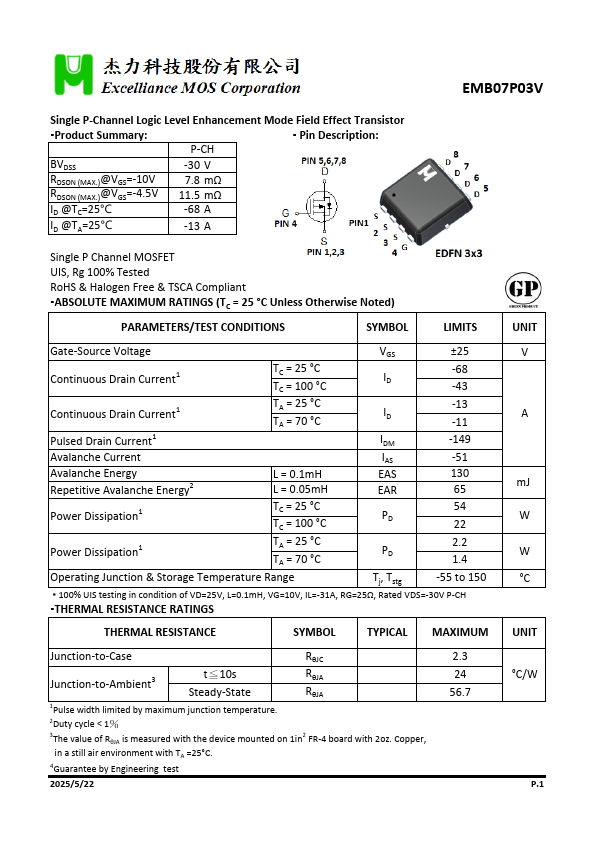

Additional preview pages of the EMB07P03V datasheet.

Product details

Description

P-CH BVDSS RDSON (MAX.)@VGS=-10V RDSON (MAX.)@VGS=-4.5V ID @TC=25℃ -30 V 7.8 mΩ 11.5 mΩ -68 A ID @TA=25℃ -13 A Single P Channel MOSFET UIS, Rg 100% Tested RoHS & Halogen Free & TSCA Compliant ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Gate-Source Voltage VGS ±25 Continuous Drain Current1 TC = 25 °C TC = 100 °C ID -68 -43 Continuous Drain Current1 TA = 25 °C TA = 70 °C ID -13 -11 Pulsed Drain Current1 IDM -149
