EMB09N03A Datasheet - Excelliance MOS

EMB09N03A N-Channel Logic Level Enhancement Mode Field Effect Transistor

    N‐Channel Logic Level Enhancement Mode Field Effect Transistor  Product Summary:  BVDSS  30V  D RDSON (MAX.)  9mΩ  ID  50A    UIS, Rg 100% Tested  G S Pb‐Free Lead Plating & Halogen Free    ABSOLUTE MAXIMUM RATINGS (TC = 25 °C Unless Otherwise Noted)  PARAMETERS/TEST CONDITIONS  SYMBOL  EMB09N03A LIMITS  UNIT  Gate‐Source Voltage  Continuous Drain Current  Pulsed Drain Current1  TC = 25 °C  TC = 100 °C  Avalanche Current  Avalanche Energy  Repetitive Avalanche Energy2  .

EMB09N03A Datasheet (216.80 KB)

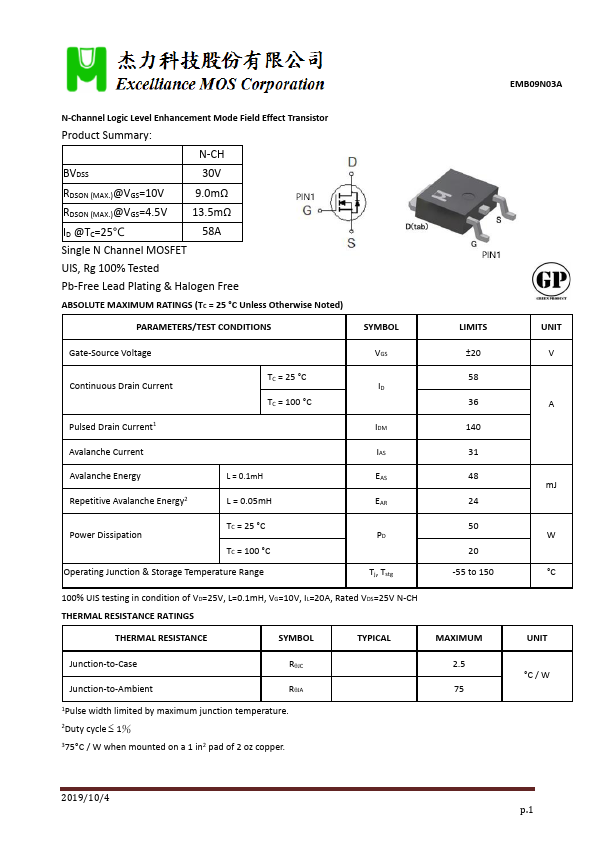

Preview of EMB09N03A PDF

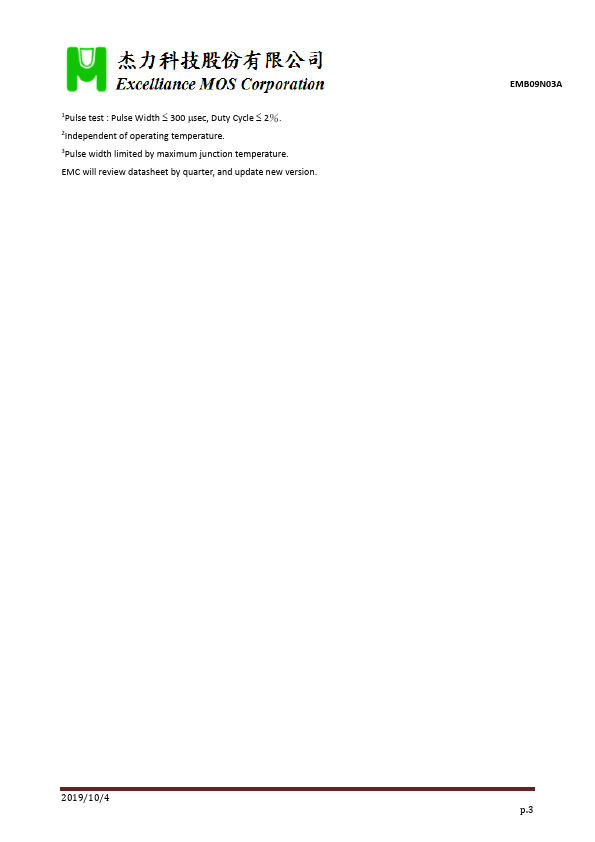

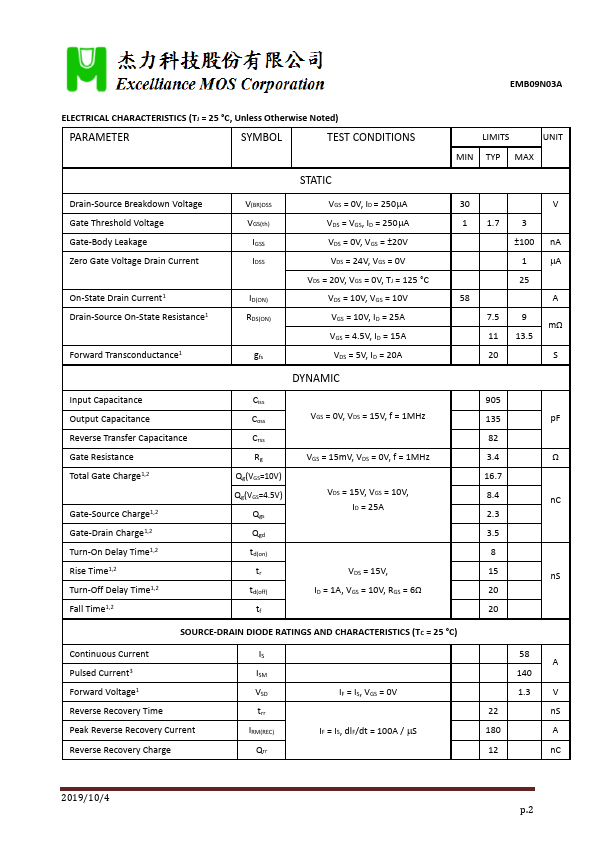

EMB09N03A Datasheet Preview Page 2 EMB09N03A Datasheet Preview Page 3

Datasheet Details

Part number:

EMB09N03A

Manufacturer:

Excelliance MOS

File Size:

216.80 KB

Description:

N-channel logic level enhancement mode field effect transistor.
